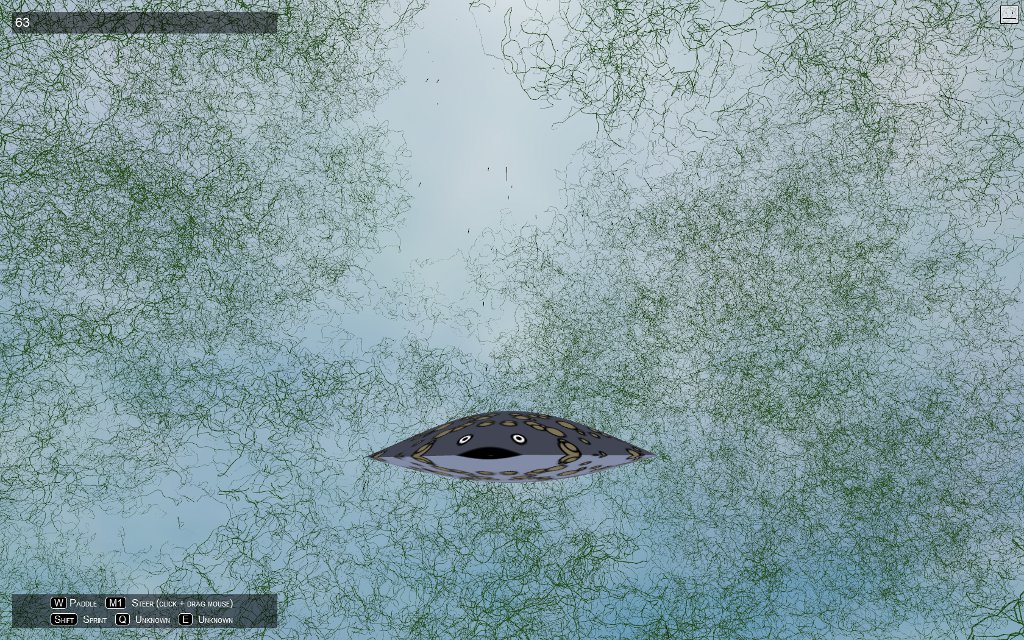

My past games all used a first-person camera. For the next one, I’m using third person because I think it will help the player better understand who they are in the game world.

Yes, you’re a beach toy with wings. My apologies.

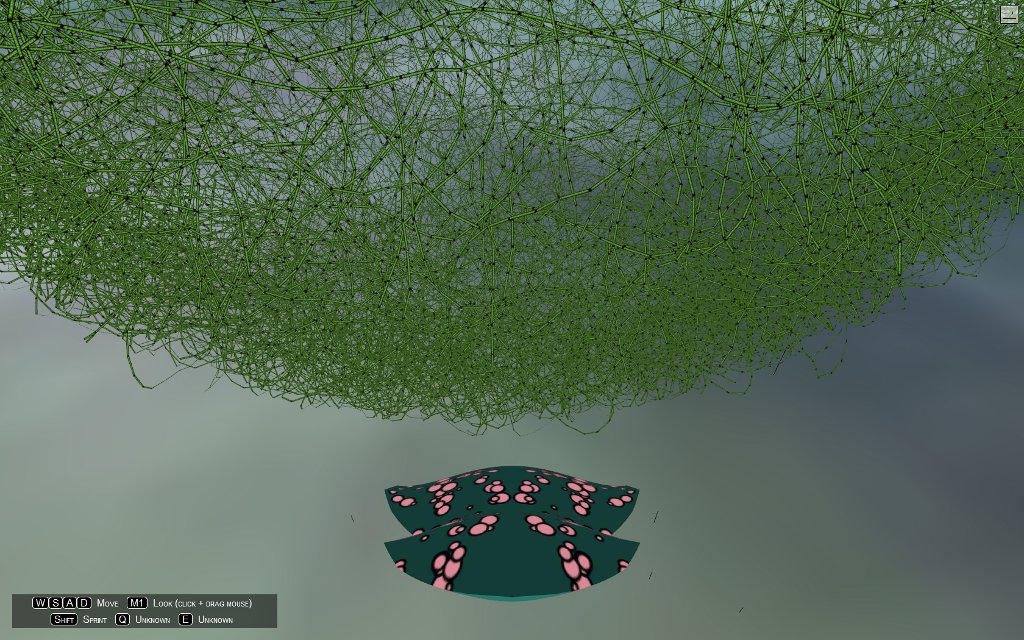

When I switched to the third person, the first thing I noticed was how jittery all the model motion became. I’d drag the mouse across the screen to change the yaw and all of my models would shake as if they were trying out a new dance step.

I traced the cause to how I was handling mouse events and camera rotation. My original first-person code established a mouse move event handler, which rotated the camera directly.

mouse: {
	x: 0,
	y: 0,
	down: false
},

onMouseMove: function(event) {
	var dx, dy;

	// if the left mouse button is down (i.e., mouse is dragging)
	if (mouse.down) {
		// generate mouse deltas
		dx = SPIN_RATE * (event.pageX - mouse.x);
		dy = SPIN_RATE * (event.pageY - mouse.y);
		// rotate camera yaw by dx and pitch by dy
		camera.turn(dx, dy);
	}
	// store off last mouse position
	mouse.x = event.pageX;
	mouse.y = event.pageY;
	return false;
}

Note that the degree of camera rotation is determined solely by the change in the mouse position. There’s no attempt to synchronize the rotation to the animation timings. This seemed to work okay in first person, but third person perspective reveals its flaws–very likely because now I have a fixed object sitting in front of the camera to compare the rest of the scene to.

The new code splits things up a little. Now, the mouse move handler only tracks changes to the mouse position.

mouse: {
	down: false,
	last: {
		x: 0,
		y: 0
	},
	next: {
		x: 0,
		y: 0
	}
},

onMouseMove: function(event) {
	// if left mouse button is down (i.e., mouse is dragging)
	if (mouse.down) {
		// store off "new" mouse position
		mouse.next.x = event.pageX;
		mouse.next.y = event.pageY;
	}
	return false;
}

In the player update function–which is called on every animation frame–I actually rotate the camera.

update: function() {
	var dt, dx, dy;

	// calculate number of seconds elapsed since last animation frame
	dt = SOAR.interval * 0.001;
	// calculate mouse deltas based on position AND time interval
	dx = 0.5 * dt * (mouse.next.x - mouse.last.x);
	dy = 0.5 * dt * (mouse.next.y - mouse.last.y);
	// rotate the camera
	camera.turn(dx, dy);
	// store off "new" position as "old" position
	mouse.last.x = mouse.next.x;
	mouse.last.y = mouse.next.y;

	... player position update ...

}

Camera rotation is much smoother. It’s still slightly clunky, as I’m computing deltas based on integer mouse positions rather than receiving them directly from the mouse driver. Hopefully, Mozilla’s Pointer Lock API will enter general usage before long.

So, I’m working on a new game, and it takes place in an “open” world for a change. No more underground ruins, moon caves, or pastel factories for this cat.

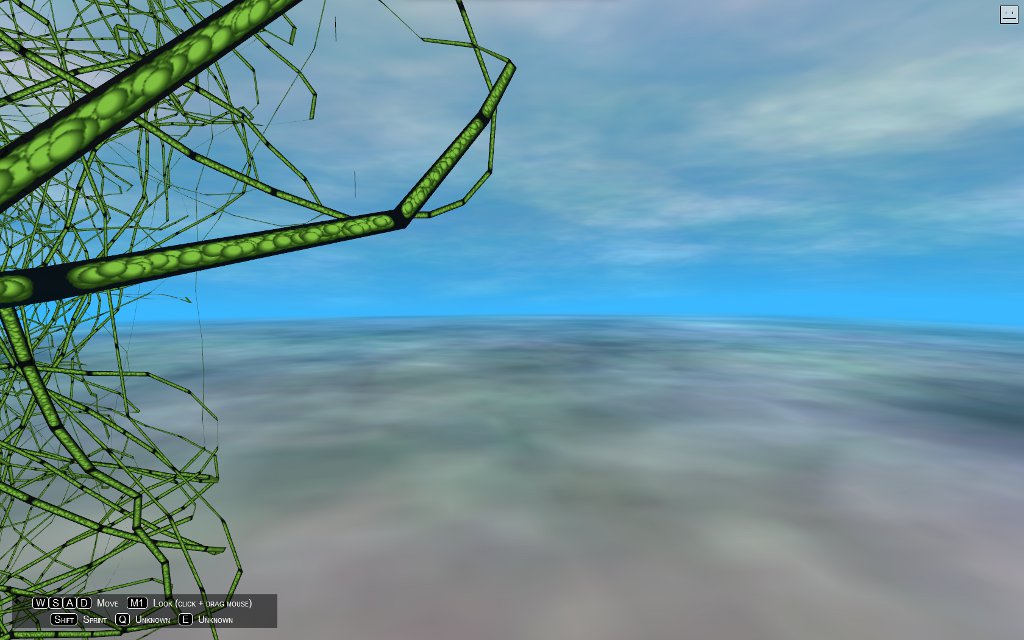

We’re hanging some hundreds of kilometers above a gas giant world here. (Don’t worry, we can float.) To one side, we have a space tumbleweed.

I generate the weed using Brownian motion. I have a point and a direction vector. Inside a loop, I add the direction vector to the point, then apply a slight random error to the direction vector, and normalize it to keep the distance constant between iterations. I also constrain the point to remain within a spherical radius, and maintain a direction vector at right angles to the direction of motion. Some rough code is below.

// p is our point undergoing Brownian motion
var p = SOAR.vector.create(24, 0, 0);
// f is our direction vector
var f = SOAR.vector.create(0, 0, -1);
// r is a right-hand vector for generating the strip
var r = SOAR.vector.create(-1, 0, 0);
// d is a scratch vector
var d = SOAR.vector.create();

for (i = 0; i < 30000; i++) {

 	// this is a triangle strip, so generate two points on either side of the point
 	this.mesh.set(p.x - 0.05 * r.x, p.y - 0.05 * r.y, p.z - 0.05 * r.z, i % 2, 0);
 	this.mesh.set(p.x + 0.05 * r.x, p.y + 0.05 * r.y, p.z + 0.05 * r.z, i % 2, 1);

 	// move the point
 	p.x += f.x;
 	p.y += f.y;
 	p.z += f.z;

 	// add a random error to the direction
	f.x += 0.5 * (Math.random() - Math.random());
 	f.y += 0.5 * (Math.random() - Math.random());
 	f.z += 0.5 * (Math.random() - Math.random());
 	f.norm();

 	// add a smaller random error to the right angle vector
 	r.x += 0.01 * (Math.random() - Math.random());
 	r.y += 0.01 * (Math.random() - Math.random());
 	r.z += 0.01 * (Math.random() - Math.random());

 	// this is a trashy, hacky way of insuring that the
 	// right angle vector remains at right angles to the
 	// direction vector.
 	r.cross(f).cross(f).neg().norm();

 	// if the point strays outside the sphere, generate a vector
 	// that points back toward the center of the sphere, and add
 	// it to the direction vector. the point's path will gently
 	// curve back around.

 	if (p.length() > this.MAX_RADIUS) {
		d.copy(p).norm().neg().mul(0.5);
		f.add(d);
	}
}

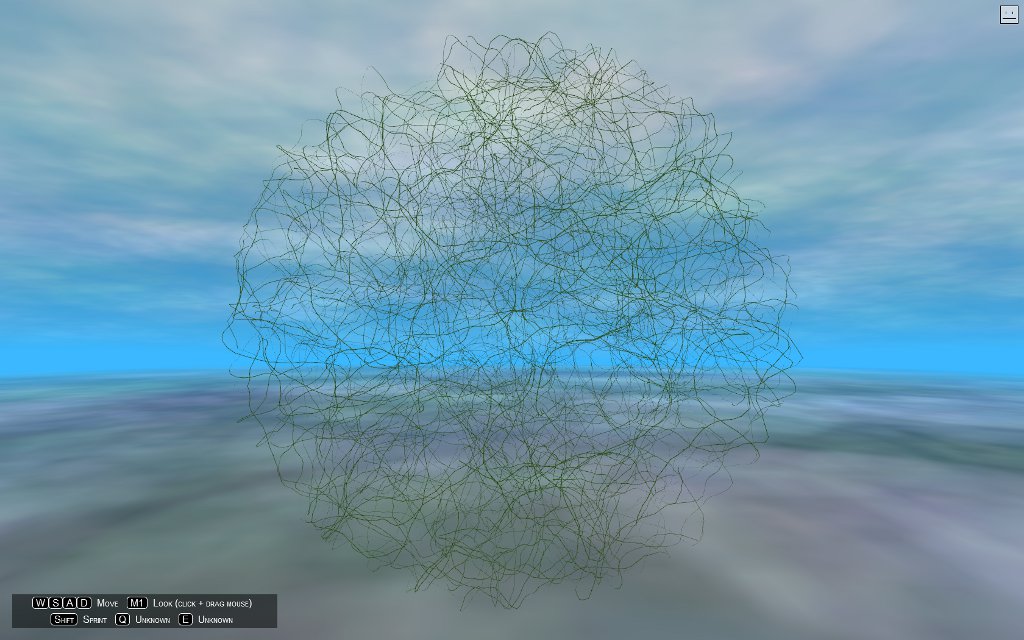

However, if I draw the mesh, I get a rather anemic-looking thing.

Now, I could increase the number of iterations, and that’s what I tried at first, but it’s a problem for two reasons. First, I want to be able to generate this in real time when the game starts up, so too many iterations means the web page will be unresponsive for more than a few seconds. Not good. The second issue is the sheer size of the object in video memory. Running in a web browser is lovely, but it keeps me mindful of the fact that I’m sharing resources with loads of other programs. I want to keep GL objects as small as possible.

There’s also a slight aesthetic problem. It’s a random tangle of stuff. I’d prefer that it look more like a product of Nature and less like a discarded shoelace.

Enter symmetry. I generate my anemic tangle as specified, but at display time, I rotate the mesh through eight successive angles and draw each one.

// rotor is just a wrapper around a quaternion.
// see https://github.com/wordsaretoys/soar/blob/master/rotator.js
// and check out the freeRotor object
this.rotor.rotation.set(0, 0, 0, 1);
this.rotor.turn(0, 0, 0);

// SYMMETRY is set to 8
for (i = 0, r = SOAR.PIMUL2 / this.SYMMETRY; i < this.SYMMETRY; i++) {
	gl.uniformMatrix4fv(shader.rotations, false, this.rotor.matrix.rotations);
	this.mesh.draw();
	this.rotor.turn(0, r, 0);
}

The vertex shader only has to multiply one more matrix, and GPUs are great at that kind of stuff.

attribute vec3 position;
attribute vec2 texturec;

uniform mat4 projector;
uniform mat4 modelview;
uniform mat4 rotations;

varying vec2 uv;

void main(void) {
	gl_Position = projector * modelview * rotations * vec4(position, 1.0);
	uv = texturec;
}

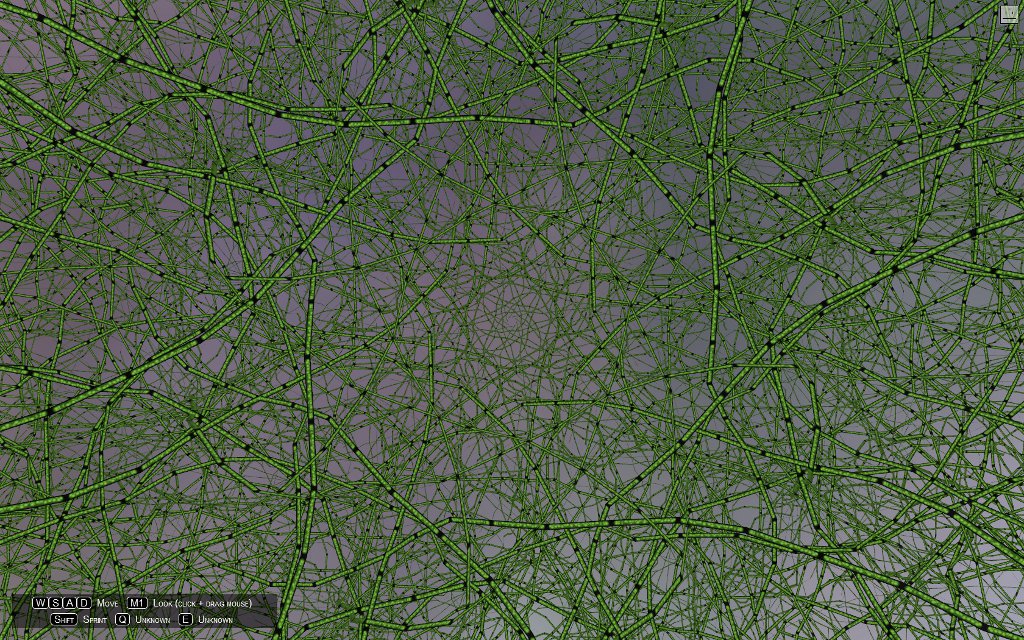

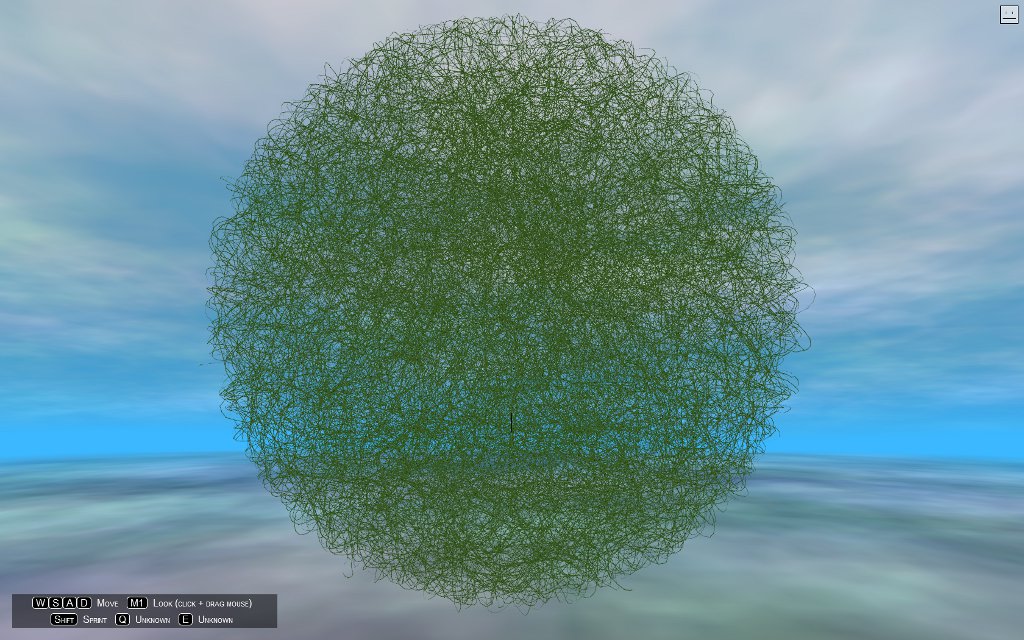

Now, I have a thick tumbleweed. There’s a performance penalty, of course, but it doesn’t seem to have affected my frame rate. As a bonus, some lovely patterns arise from the chaos.

Symmetries occur all over the natural world, and they’re a useful way of giving the appearance of structure. (Not to mention the appearance of doing more work than you actually did.)

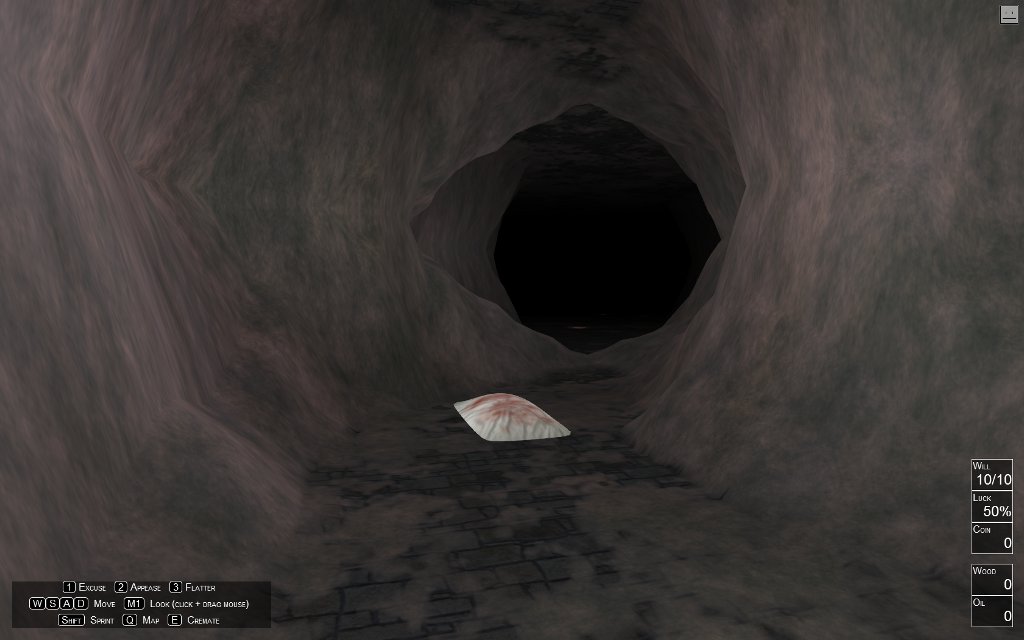

If you’ve ever wanted to spend some time creeping through a vast underground ruin in search of dead people to argue with, have I got a game for you.

I explained the general idea behind Easy Does It in the post just below this one, but to reiterate: the game was inspired by my Skyrim experience of running into ruins to kill people and take their treasure. I could just imagine them lying there dead wondering, what the hell was that all about? And I could just as easily imagine hiring some dope to come in after me and tidy the place up. You know, burn the bodies, clean up the broken furniture, make sure the ghosts (and their gods) don’t harbor any grudges.

You, my friend, may just be the dope hero I’ve been looking for.

Enjoy.
